V Shape Wire Slot Wedge Wire Screen Panels For Solid-liquid separation

Product Description:

V Shape Wire Slot Wedge Wire Screen Panels For Solid-liquid separation is welded by V wire and support rod.There is a fixed value slot between each v wire. The support rod can be round wire can also be a triangular or trapezoidal shape, wedge wire is triangular wire , the wedge shape wire make the gap opening one end small and the other end large, it is not easy to jam.This product is processed by advanced fusion welding technology, with high strength, rigidity and bearing capacity, which can be used to make rigid sieving filters of various shapes.The slot size is accurate and the filtering precision is high.It has the advantages of strong structure, high ventilation efficiency, good heat dissipation, high temperature resistance, corrosion resistance, good mechanical properties, long service life, safe and reliable.

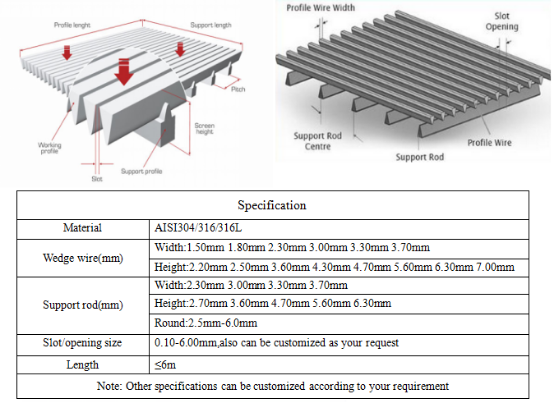

Specification:

Regular Specifications:

V Shape Wire Slot Wedge Wire Screen Panels For Solid-liquid separation

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

Length up to 3150mm

Special specification can be made according to your need.

Advantages:

V Shape Wire Slot Wedge Wire Screen Panels For Solid-liquid separation

Wedge wire and support rod adopt the international advanced continuity resistance welding technology automation mine screen mesh welding production equipment, sieve seam even, stable welding quality, wear-resisting, long service life and has a high strength, stiffness and bearing capacity, can make various shapes of the rigid screening filter device. And the screen seam is v - shaped, easy to leak, not easy to plug.

Industry:

V Shape Wire Slot Wedge Wire Screen Panels For Solid-liquid separation are mainly used for screening filter coal mine, coal products, such as iron ore, sandstone can also be used for food, oil, water and other solid liquid filter, mainly used in coal mine, coal washing, food, is a manufacturing and other industries, can also be used to decorate the breeding, etc.

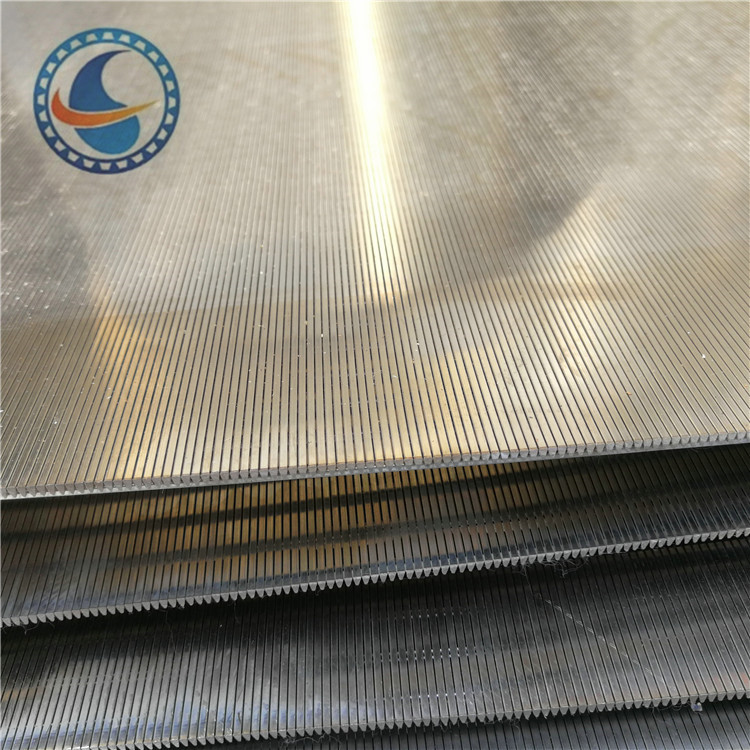

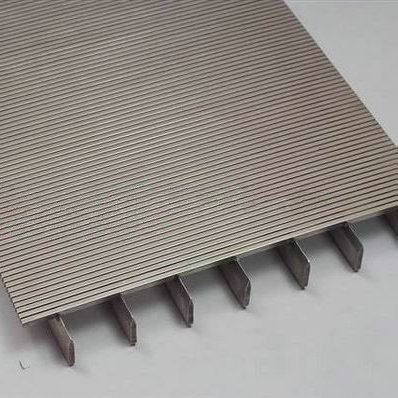

Pictures:

Package:

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson screen, Mine sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Spiral screen tube,Rod based continuous slot screen pipe,Wire-wrap screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate,Flat wedge wire panel,Water filter,Arc screen, screen nozzle etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of the Company sincerely hopes to build the well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
