| Brand Name : | HengYuan |
| Model Number : | HY072701 |
| Certification : | ISO,CO,FORM E,CIQ, etc |
| Price : | Negotiated price |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1500 pcs /month |
| Delivery Time : | 7 days |

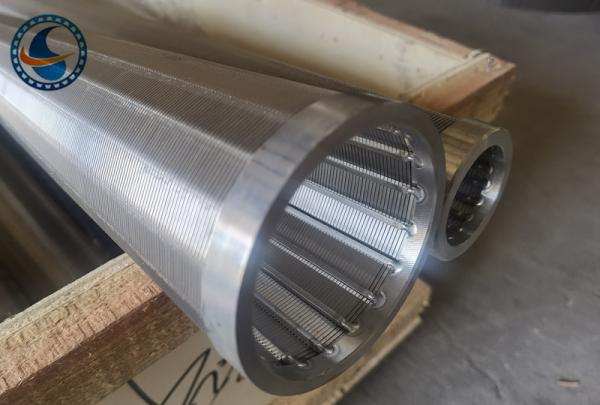

Taper wedge wire screen filter tube also known as Hydek filter screen is used for liquid oil and solid particles separation and filtration of a special tube body taper filter tube is composed of "Vee" shaped or wedge-shaped stainless steel wire and stainless steel support bar.
The diameter of the upper mouth and the lower mouth of the tube body are different, thus forming a certain taper.
The smooth surface of the filter tube is the filtering surface, and the gap is a strip shape, which belongs to the surface filtering form.
As a variety of forms of automatic filters (such as automatic backwashing, scraper self-cleaning, scraper self-cleaning, sucking type self-cleaning filter) cross-best filter elements are widely used in various industries of fluid filtration.
Our company can make specifications length of 1200, 1120, 960, 560, 670mm, welcome new and old customers to visit the factory guidance.
Name: Tapered Wedge Wire Screen Filter Tube,Johnson screen,Water well screen, Wire warp screen,Slotted tube,Wound screen,Continuous slot screen filter. |
| Material: Stainless steel304,316L etc. |
| Diameter: ø38mm, ø65mm, ø90mm, ø110mm |
| Slot: 0.25mm |
| Length: 515mm, 1020mm |
| Wrap wire:1×2mm |
| Support rod:2×3mm |
| Ends:One end with Welded rings/Plain beveled end, the other end open. |
Common size:ø38/ø65×515mm, ø65/ø110×515mm, ø38/ø90×1020mm, ø65/ø110×1020mm |
Mainly used in steel, chemical, pharmaceutical and beverage industries. According to the characteristics of the shape of the filter, the medium can get better diversion, separation and filtration.
CONTINUOUS operation, VERY high FILTRATION efficiency, high strength, long service life, in-line application, can be used in series or parallel, automatic operation, easy installation, in the process of self-cleaning, strong 316 stainless steel V-wire filter.
|
|
