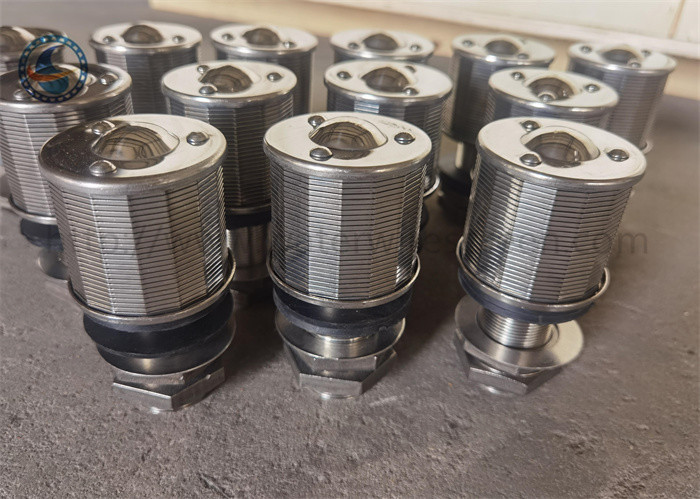

Stainless steel ScreenThreaded Water Filter Screen Nozzle For Water Treatment

Product Description:

tainless steel wedge wire screen filter nozzle with threads coupling is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Features:

1. Type 316L stainless steel construction.

2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

OEM service:

Please tell us the specification of the water cap you need and we will help you to process the high quality products.
Custom range
Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.
Gap: 0.2-0.25mm, can be according to customer needs.
Type: Female thread, male thread, no thread, long handle, single velocity, double velocity etc.
Length: 50mm, 100mm, 130mm, 150mm, and by customers' request

Use:

The drainage cap purposes Stainless steel water cap is widely used in power plant, petroleum, chemical, pharmaceutical, food industries such as water treatment equipment, water treatment equipment is the key components of water distribution and water device.ABS enhanced water cap series.It is suitable for ion exchange, ion exchange resin and so on.Complete product specifications, including internal thread, external thread, single head, double head, long handle....Water treatment equipment is also used in various forms, such as mechanical filtration equipment, zwitterion exchange resin, floating bed, double room bed, mixing bed and gravity filter.

Regular Specifications:

Delivery Time:

By courier:5-7 workdays by speicial offer.

By air:7-10 workdays at apointed airport.

By sea: 30-35 days at appointed port.
