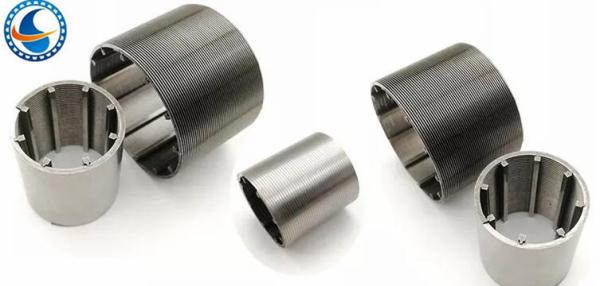

Stainless Steel Johnson Continuous Slot Profile Wire Screen

Wedge Wire Filter Screen Size information:

Material : Stainless steel wire.Such as: SS304, SS201, SS316L etc.

Diameter : 25-1300 mm ,can make as customers request.

Slot: 0.02-10mm

Length :10-4000mm

End connection:male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.

Filter type:From outside to inside. also can make other type:From inside to outside.

Wire size: 1*2mm, 1.2*2mm, 1.5*2mm, 1.5*2.5mm, 2*3mm, 2*3.5mm, 2*4mm, 3*4.6mm, 3*5mm etc.

Support rod: 2*3mm, 3*4.6mm, 3*5mm etc.

Johnson Continuous Slot Profile Wire Screen​ Advantages:

1. Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.

2. Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.

3. Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.

4. Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)

5. Long live: Welded at each intersection creating a strong and durable screen.

6. Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.

7. Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.

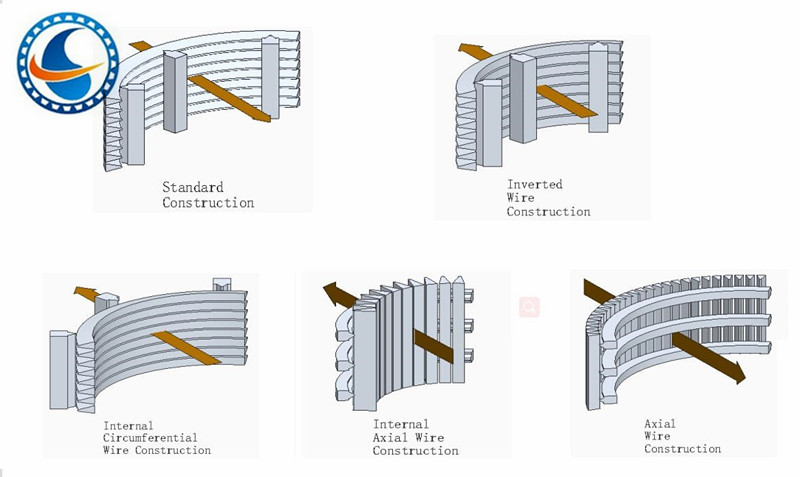

The constructions of Johnson Continuous Slot Profile Wire Screen :

1.Standard construction: The flow goes from outward to inside. Vertical rod support.
2.Axial wire construction: The water or liquid flows from outside to inside. Horizontal rod support.
3. Internal circumferential wire construction: The flow goes from inside to outside of the wedge wire screen.
4.Inverwire construction. From inside to outside. Reverse flow.​

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson screen, Mine sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Spiral screen tube,Rod based continuous slot screen pipe,Wire-wrap screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate,Flat wedge wire panel,Water filter,Arc screen, screen nozzle etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of the Company sincerely hopes to build the well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
