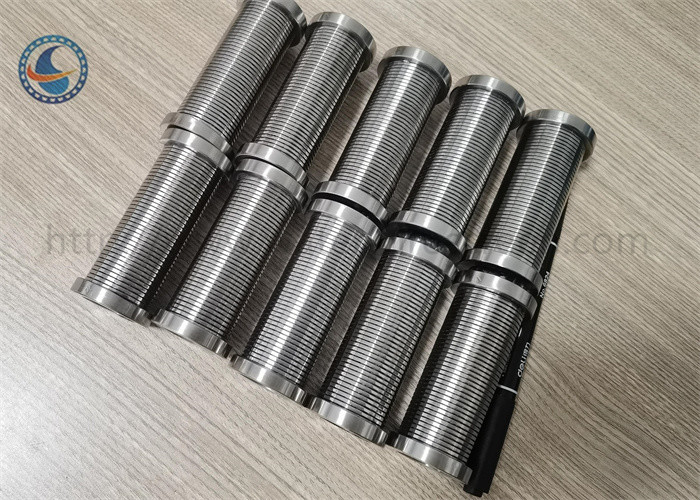

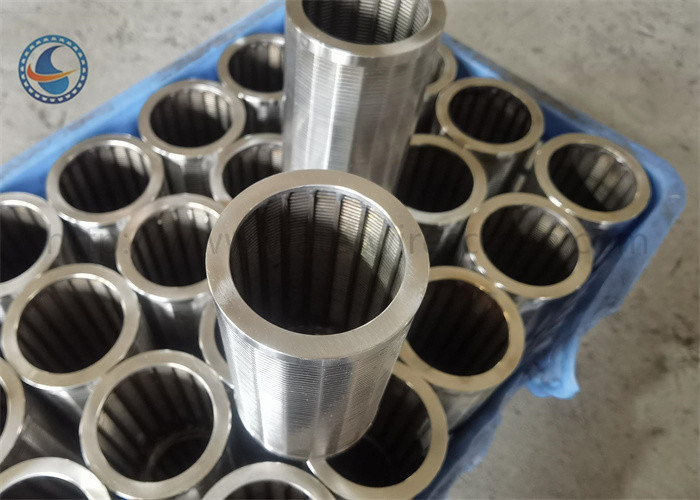

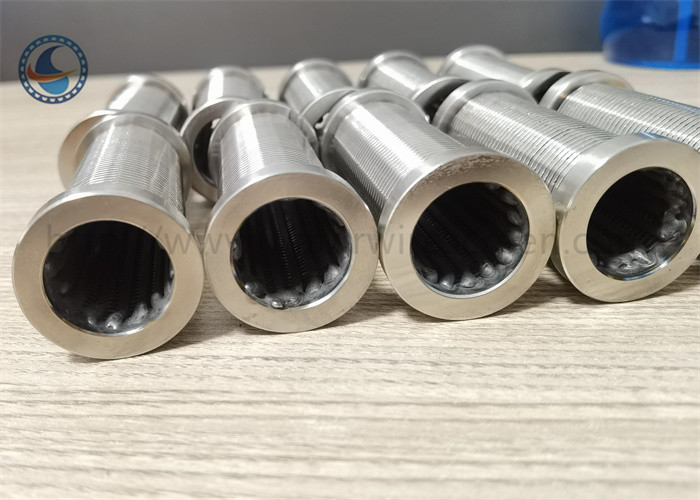

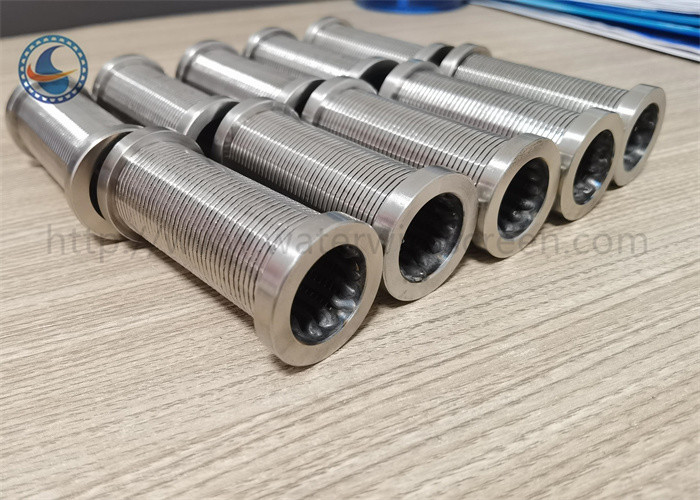

Johnson Wire Screen V Wire Wrapped Screen FIlter Element

Description:

Water well screen is welded by V wire and support rod.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.

Working principle of seam screen:

Slit vibrator is composed of a set of cylindrical shaker with straight equipment. There is a bias block or a bias wheel at both ends of the cylindrical shaker. When the motor drives the bias wheel to rotate, centrifugal force occurs and is transmitted to the equipment on the main shaft in the cylinder, so that the main shaft moves in a circle around the center line fixed on it. Thus, the two supporting rings fixed at both ends of the spindle roll along the axis direction.
Because the two supporting rings are located in opposite directions of the roll and parallel to each other, a gap is formed between them parallel to the horizontal plane. When the material enters from the feed end, it falls into the lower discharge port through the gap, and the other part of the material is discharged from the discharge port and discharged out of the machine through the discharge tank.
The working principle of the seam screen: when the motor drives the biased wheel clockwise rotation by the coupling, the centrifugal force drives the equipment at both ends of the vibrator to the opposite direction along the axis of the support ring light, at the same time installed in the rotor above the two isolation tautts also follow the rotation of the rotor and contraction deformation, So the whole rotor is moving back and forth along a sinusoidal track at a certain point of view to the horizontal plane.

Regular Specifications:

Special specification can be made according to your need!

Advantages:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Industry:

Johnson Screens specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:

Geological formations comprised of small, fine particles

Water wells where gravel packs will be installed

Thin aquifers, where maximum open area is required

Large- and small-diameter deep wells

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson screen, Mine sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Spiral screen tube,Rod based continuous slot screen pipe,Wire-wrap screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate,Flat wedge wire panel,Water filter,Arc screen, screen nozzle etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of the Company sincerely hopes to build the well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
