Wire Wound Screen Water Well screen Wire Wrapped Screen For Sand FIlter

The role of a wire-wound screen

Filter out the impurities and suspended matter in the water to ensure that the water is clean and sanitary and will not cause blockage. Screens are typically made of fine-mesh stainless steel mesh that effectively removes sediment, sediment, and other small particles from the water. The design and placement of wire-wound screens can be adjusted to ensure a balance between water flow and filtration.

Working principle of seam screen:

Slit vibrator is composed of a set of cylindrical shaker with straight equipment. There is a bias block or a bias wheel at both ends of the cylindrical shaker. When the motor drives the bias wheel to rotate, centrifugal force occurs and is transmitted to the equipment on the main shaft in the cylinder, so that the main shaft moves in a circle around the center line fixed on it. Thus, the two supporting rings fixed at both ends of the spindle roll along the axis direction.
Because the two supporting rings are located in opposite directions of the roll and parallel to each other, a gap is formed between them parallel to the horizontal plane. When the material enters from the feed end, it falls into the lower discharge port through the gap, and the other part of the material is discharged from the discharge port and discharged out of the machine through the discharge tank.
The working principle of the seam screen: when the motor drives the biased wheel clockwise rotation by the coupling, the centrifugal force drives the equipment at both ends of the vibrator to the opposite direction along the axis of the support ring light, at the same time installed in the rotor above the two isolation tautts also follow the rotation of the rotor and contraction deformation, So the whole rotor is moving back and forth along a sinusoidal track at a certain point of view to the horizontal plane.

Specificarion:

Characteristic:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Regular Specification:

Material: Stainless steel 304, 304L, 316, 316L, 321. Low Carbon Steel Galvanized

Diameter: 30 - 1000mm, such as 63mm, 89mm, 117mm, 168mm, 219mm, 273mm, 325mm, 377mm and so on.

Inch: 3 " , 4 " , 6 " , 8 " , 10 " , 12 " , 14 " , 16 " and so on.

Length: 2.9m and 5.8m is the regular length ,and we can make the length 300mm - 6000mm.

Slot size: 0.2mm , 0.5mm , 0.7mm , 1.0mm , 1.5mm. 0.1 - 45mm.

End connection: welded rings, thread couplings ( male / female )

V wire: 63 #, 93 #, 118#, and so on.

Support rod : diameter 300mm, 350mm, 380mm, 400mm, 480mm, 500mm and so on.

We can make the screen pipe as the customers' requested!

Use:

Johnson wire wrap screen is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.

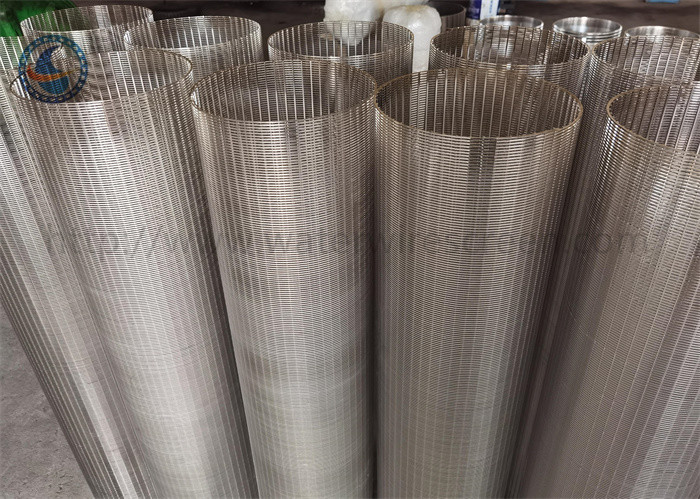

Pictures:

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson screen, Mine sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Spiral screen tube,Rod based continuous slot screen pipe,Wire-wrap screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate,Flat wedge wire panel,Water filter,Arc screen, screen nozzle etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of the Company sincerely hopes to build the well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
