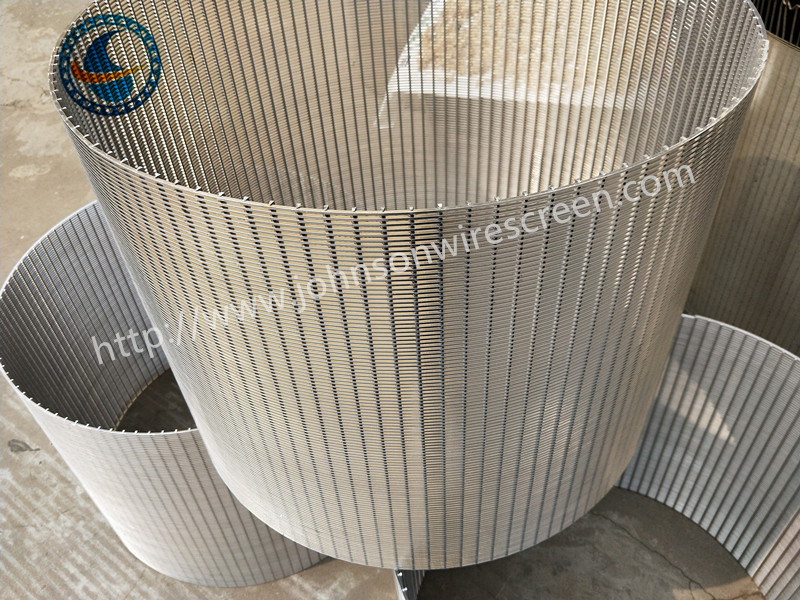

Stainless Steel 630mm Diameter Wedge Wire Screen For Wastewater Treatment

Wedge wire screen tube also called round slot tube.

It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

The wedge wire screen tube is composed of working profile and support profile.

It is produced on an automotive machine.

The support profiles are placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

Material: Stainless Steel 304 ,316L etc.

Diameter:29-1300mm

Slot size (mm):0.5, 0.63, 0.75, 1.0,1.5mm in usual

Length: 2.9m or 5.8m in usual to fit container

End connection:male/female threaded couplings Or welded rings/plain beveled ends

According to the surface of the wedge wire screen tube

There are two types of wedge wire screen tube seen from the surface.

One is the normal types, which has continuous and regular angles on the edge.

It is economical, which is suitable for the applications where the accuracy is not very strict.

The other type is the perfect round type. It is produced by the strict standard, which has better filtering accuracy than the common type. Additional, the perfect round type can be used in the most precise machines and complete the arduous filtering task.
