| Brand Name : | Heng Yuan |
| Model Number : | HY004 |
| Certification : | ISO9000 |
| Price : | Negotiation |
| Payment Terms : | L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1000pcs/Month |
| Delivery Time : | 7-10 work days,according to the quantity |

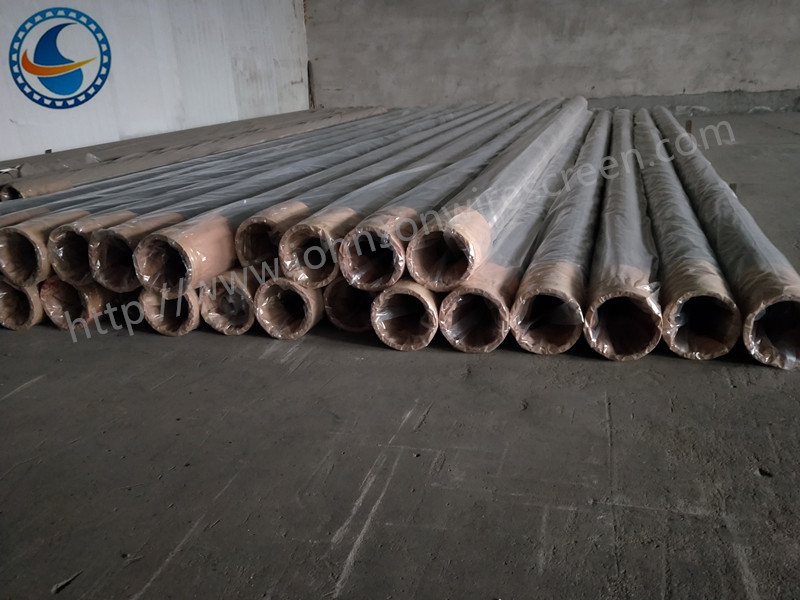

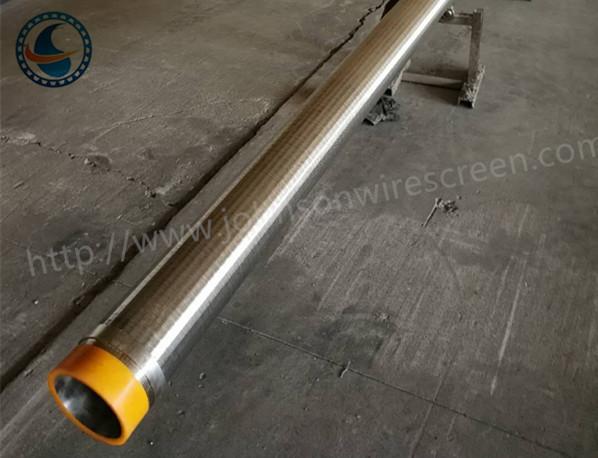

Diameter 168mm (6-5/8") , 219mm (8-5/8") Stainless Steel 304 Grade Water Well Screen
Description:
| Product Name | Profile V Wire Water Well Screen |
| Material | Stainless Steel |
| Grade | 321 |
| O.D | 273 mm |
| Size | 10 " |
| Slot size | 1.0 mm |
| Length | 5.8 m |
| End connection | Thread Couplings ( male / female ) |
| Wire size | 118 # |
| Support rod | 140 # |
| Wire shape | V shape |
Regular Specifications:
SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
The sizes in the table, is our usual size.
Special specification can be made according to your drawing !
Advantages:
When compared to conventional slotted pipe, Water Well Screens have superior open area due to their continuous slot openings.
The benefits of which will :
• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent
maintenance costs.
|
|
