Stainless Steel 304 Wire Wrap Wedge Wire Screen Mesh Grate Use In Coal Washer
Product Description:
Stainless Steel 304 Wire Wrap Wedge Wire Screen Mesh Grate Use In Coal Washer is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire ,a triangular wire, rectangle or a trapezoidal wire. There is a certain distance between each support bar too . The filter surface is smooth, the gap is uniform, and it is not easy to block.
We can weld the frame around the bottom or bottom of the net. The frame can be flat steel, angle steel, channel steel, or other shapes, all of which can be produced according to customer requirements.
Specification:
| Material | Stainless steel |
| Grade | 304 |
| Dimension | 1219mm*486mm, request |
| Slot Size | 0.5 mm,request |
| Width | 486mm, up tp 3000mm |
| Length | 1219mm, up to 4430mm |
| Type | screen plate |
| Wire size | 2.5*4.8 mm |
| Support rod | 1.8*25 mm |
| Wire shape | V shape |
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm
Length up to 4430mm
| SIZES OF THE WIRE AND ROD | ||||||
| WIRE SHAPE | V | V | V | V | V | V |
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.0 | 2.2 | 3.0 |
| Height(mm) | 2.0 | 2.0 | 2.0 | 3.5 | 4.5 | 4.6 |
| ROD SHAPE | V | V | V | V | V | O |
| Width(mm) | 2.0 | 2.2 | 3.0 | 3.0 | 3.2 | Diameter |
| Height(mm) | 3.0 | 4.5 | 4.6 | 5.0 | 6.0 | 3.0~3.8 |
Advantages:
Stainless steel V Wire Welded Screen Slot Size 1mm Use for Coal Industry have many advantages as below:
V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well
tend to allow the particles that are just barely smaller than the
width of the slot pass. In other shapes of openings, these
particles would get caught in the screen and clog it.
Continuous Slots: The special design gives continuous slot opening across the
periphery and length of screen.
Very Large Open Area: This design gives continuous slot and hence the% open area for
water to enter is more than 2 times that of conventional slotted
pipes of any size and slot opening. This allows more water to enter
at much lesser frictional head loss and the efficiency of tube well
is improved appreciably.
Energy Saving: Due to reduce frictional head losses and increased discharge, the
pump load reduces the power required to pump same quantity of
water. Power saving of around 20-25% is observed.
Industry:

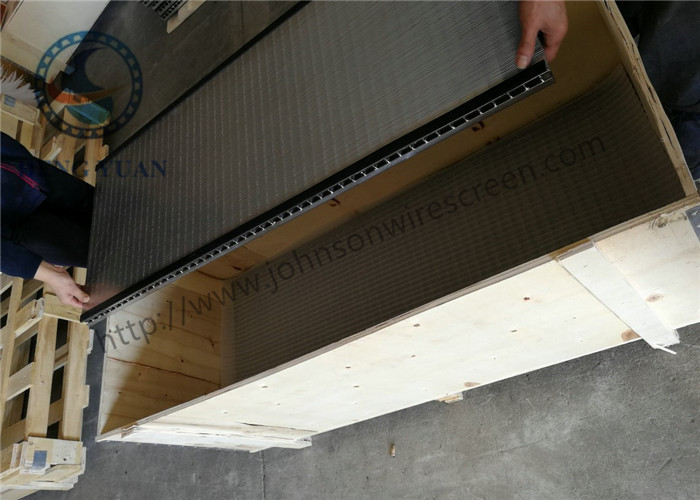

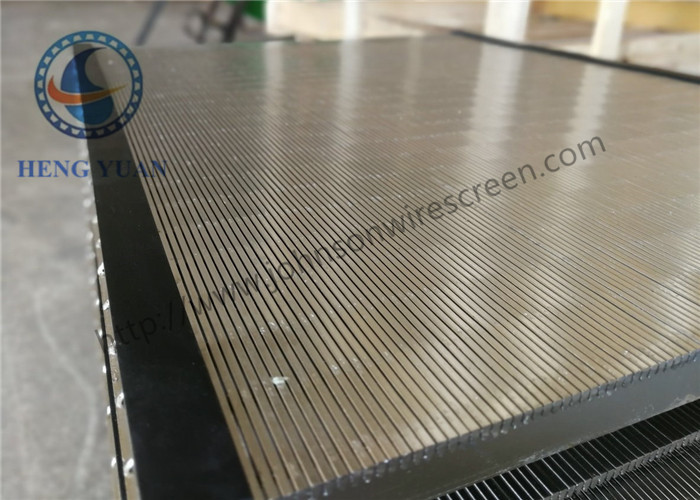

Pictures:
|
|
