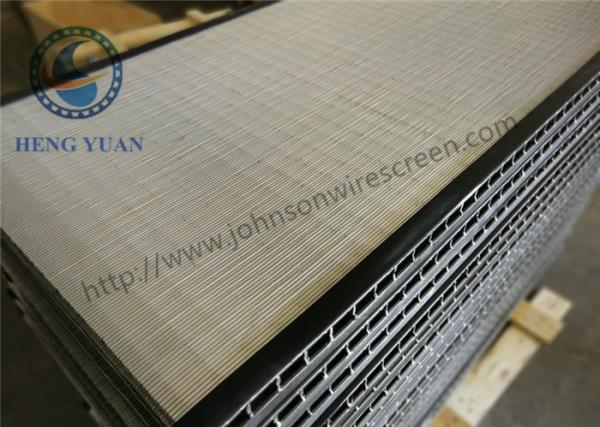

Welded Wedge Wire Screen Sieve Plate For Coal Washer

Welded Wedge Wire Screen Sieve Plate Description:

Strong Structure Wedge Wire Screen Sieve Plate is welded by Vee wire and support rod.

There is a fixed value slot between each vee wire.

The support bar can be a round wire ,a triangular wire, rectangle or a trapezoidal wire.

There is a certain distance between each support bar too .

The filter surface is smooth, the slot is uniform, and it is not easy to block.

Wedge Wire Screen Sieve Plate Specification:

Welded Wedge Wire Screen Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

Length up to 3150mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Special specification can be made according to your need.

Welded Wedge Wire Screen Sieve Plate Industry:

Mining machinery:

Used for desilting and dewatering of coal preparation plants.

Wheat tooth machine:

It is suitable for use in wheat tooth mill, floater and drying stove.

Beer machine:

It is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.

Food industry:

The filtration process can be used for food and beverage.

Aquaculture:

Used for farming, cleaning up waste residues from animals.
