Wire Welded Johnson Screen Mesh Stainless Steel 304 For Coal Washing Equipment

Product Description:

Wire Welded Johnson Screen Mesh Stainless Steel 304 For Coal Washing Equipment is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire or a triangular wire or a trapezoidal wire.

Specification:

Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

Length up to 3150mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Special specification can be made according to your need.

Industry:

Stainless Steel 304 Wire Welded Continuous Solt Johnson Wedge Wire Flat Screen can be used for filtering and screening of many kinds of media, and it is widely used in multi-industry screening, filtration, dehydration, desilting and so on.

1. mining machinery: used for desilting and dewatering of coal preparation plants.
2. wheat tooth machine: it is suitable for use in wheat tooth mill, floater and drying stove.
3. beer machine: it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.
4. huanbao: used for filling oil, gas and Wells with sand and gravel to protect underground and ground equipment.It has the advantages of high opening rate, large filtration area, fast filtration speed and long service life.
5. food industry: the filtration process can be used for food and beverage.
6. aquaculture: used for farming, cleaning up waste residues from animals.
7. chemical industry and other: sewage treatment for sugar mills and paper mills; Material filtration, dehydration and the supporting use of all kinds of painting rooms in chemical fertilizer plant; Starch filtration in the food factory; Ventilation for grain storage.

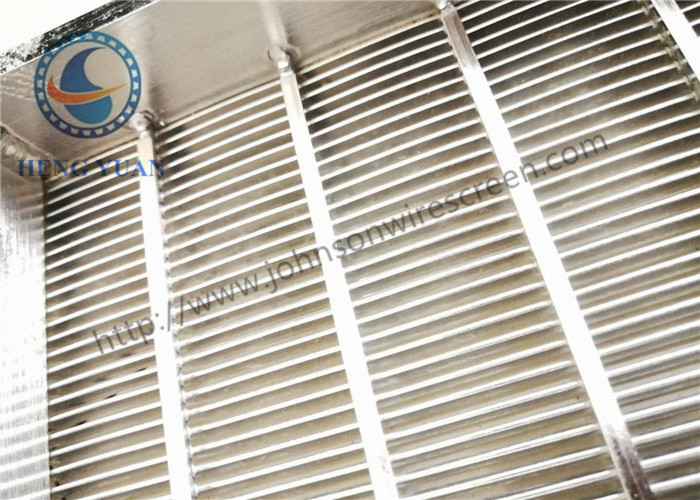

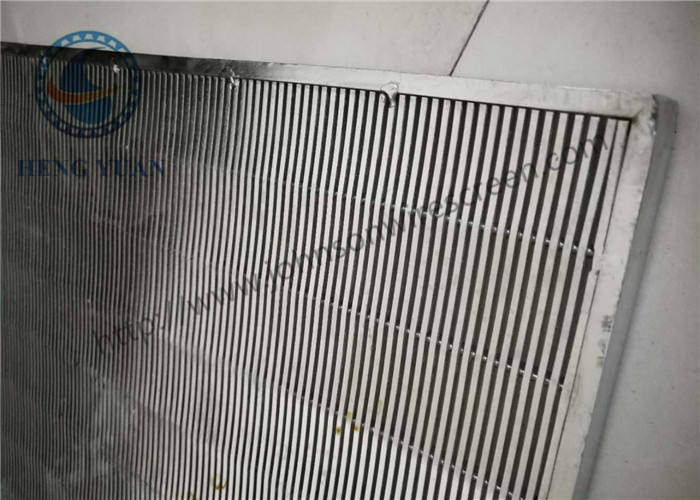

Pictures:

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson screen, Mine sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Spiral screen tube,Rod based continuous slot screen pipe,Wire-wrap screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate,Flat wedge wire panel,Water filter,Arc screen, screen nozzle etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of the Company sincerely hopes to build the well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
