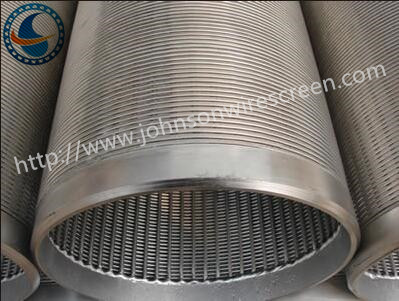

High Pressure Profile V Wire Wound Screen Pipe,Slotted Filter Pipe

Product Description:

Hengyuan Wound Screen Pipe is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.

.

Specification:

Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

O.D.: 4, 6, 8, 10, 12 inch and as request.

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Length: 50mm-6000mm

End Connection: welded rings or thread couplings ( male / female )

Specification of the wrap wire: 2*3.5mm, 2.2*3.5mm, 3*4.6mm, 3*5mm, 3*6mm.

Specification of the rod:2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on.

Special specification can be made according to your need!

Application of johnson screen:

- Separating;

- Sizing;

- Straining;

- De-watering;

- Filtering;

- Drying;

- Water intake;

- Media retention

Characteristics of johnson screen:

- More open area

- Precise openings

- Maximum design flexibility

- Stronger and more durable, economical

- Easier installation and long-term operating etc

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson screen, Mine sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Spiral screen tube,Rod based continuous slot screen pipe,Wire-wrap screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate,Flat wedge wire panel,Water filter,Arc screen, screen nozzle etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of the Company sincerely hopes to build the well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
