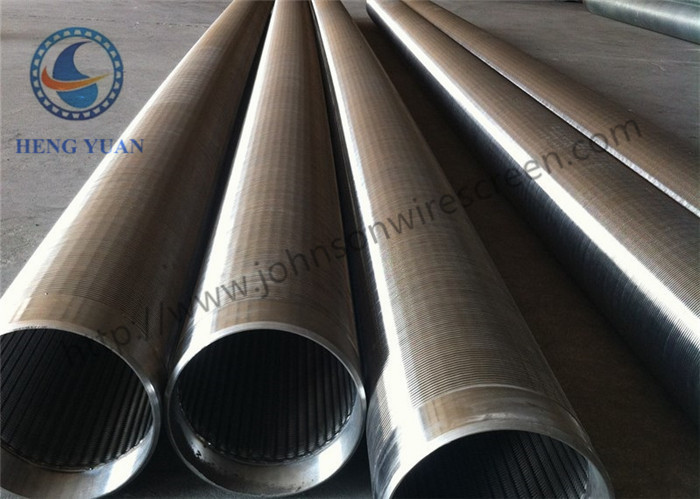

Wire Wrap Jonson Screen OD 273 10 " 0.25mm Use In Water Well Screen Pipe

Product Description:

Wire Wrap Johnson screen is welded by V wire and support rod.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.

.

Specification:

Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

O.D.: 4, 6, 8, 10, 12 intch and as request.

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Length: 50mm-6000mm

End Connection: welded rings or thread couplings ( male / female )

Specification of the wrap wire:1*2mm, 2*3mm, 2.2*3.5mm, 3*4.6mm and so on.

Specification of the rod:2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on.

Special specification can be made according to your need.

Advantages:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Industry:

water well

water supply systems

Refining & petrochemical

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson screen, Mine sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Spiral screen tube,Rod based continuous slot screen pipe,Wire-wrap screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate,Flat wedge wire panel,Water filter,Arc screen, screen nozzle etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of the Company sincerely hopes to build the well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
