Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. Our company produce:Johnson screen,Water well screen,Wedge wire screen,Wire wrap screen,Wound screen etc.
8 Years
| Ask Lasest Price | |
| Brand Name : | HengYuan |
| Model Number : | 29-1000mm |
| Certification : | ISO, CIQ, SGS, CE |
| Price : | Negotiated price |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1500 pcs/month |
| Delivery Time : | 7 days |

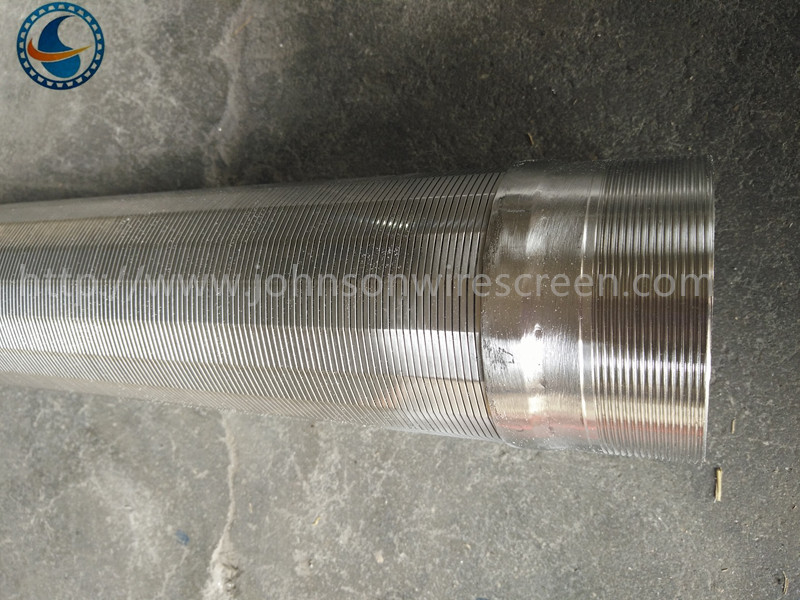

Stainless Stell Johnson Type Wedge Wire Screen For waste water
Wedge wire screen also be named Vee-wire screen pipe .Continuous slot vee-wire screen tube ,Wire wrapped screen ,Wire wound screen ,water filter .It is made up of Vee-shaped wrapped wire and round rod in each intersection welded together .Accurate slot and high filtration precision .
1. Material: Stainless steel 202/304/304L/316/316L etc
2. Opening / Slot: 0.05mm - 100mm
3. Max Length: 4m
4. End connection: Welded rings; Male/female threaded; Closed up; Flange and so on.
5. Diameter:29-1200mm
6. Wire size: 1*2mm, 1.2*2mm, 1.5*2mm, 2*3mm, 2*3.5mm, 3*4.6mm, 3*5mm
| Wedge Wire Johnson Screen Filter | ||
| Specification (Profile wire): | Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2 Height(mm): 2.0 2.5 3.5 4.6 5.0 6.0 | |
| Specification (support rods): | Width(mm): 2.0 3.0 Height(mm): 3.0 4.6 5.0 6.0 7.0 Round: From 2.50mm to 6.0mm | |
| Note: other wires and rods available upon request | ||
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. | |
| Material: | Stainless steel 304, 304L, 316L ,321 etc.) | |
| Length | Upto 4 meters | |
| Diameter | 29-1200mm | |
| Screen ends | Plain beveled ends, male/female threaded, flange, close up. | |
| Other sizes available on request. | ||
Advantage | Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs. | |
Quality contral
1. Certified with ISO 9001:2008
2. High-end produce with good quality , excellent in workmanship ,
best service
3. All of the product are inspected carefully by QC before delivery
Packing details
1. With a plastic film winding and then packed in wooden cases
2. According to your requirment.
Delivery time
Common size we have stock, can delivery within 1 week .
Special size depend on the quantity
Min. Order
If have stock, any quantity is ok .
If no Stock, 1 Square meter
Payment terms: T/T, L/C ,Paypal ,West Union etc.
Trade term : EXW or FOB Tianjin
|
|
