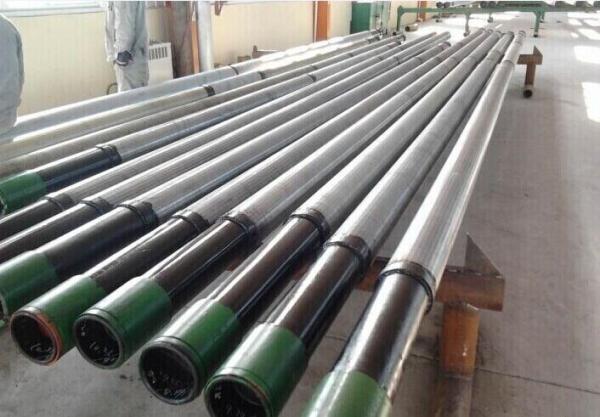

Blind Casing Pipes And Jacket Screen Filter Pipes For Geothermal Well Drilling

Pipe Base Screen Information:

1. Hengyuan screen pipe contain single-deck well screen,double-deck well screen,pipe base well screen etc.

2. End connection:welded rings,threaded couplings

3. The length upto 6000mm

4. Used in oil well,gas well,water well sand control,slurry filter

Feature:

1. High flow capacity.

The jacket is made of vee wire well screen this allow more water or oil to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.

2. Perfect integral strength and strong anti-deformation ability.
The internal part of filtration jacket is supported by base pipe and the outer protective shroud can be fixed outside the filtration jacket if necessary. The integral strength of base pipe with drilled holes is merely 2~3% less than standard casing or tubing. So it can withstand compression deformation from stratum with sufficient integral strength. Even if local deformation occurs, the gap of compressed part will not be enlarged. It has been proved to be highly reliable on sand control.

3. More choice.

The screen jacket material can be stainless steel or low carbon steel,it is can as per your requirement.

4. Slot with high density, low flow resistance .Slot density are 3~5 times as traditional slotted screen, with low flow resistance. It is conducive to increase production of oil or gas.

5. Good manufacturability makes high efficiency, low cost, and large-scale production achievable.

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson screen, Mine sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Spiral screen tube,Rod based continuous slot screen pipe,Wire-wrap screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate,Flat wedge wire panel,Water filter,Arc screen, screen nozzle etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of the Company sincerely hopes to build the well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
