Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. Our company produce:Johnson screen,Water well screen,Wedge wire screen,Wire wrap screen,Wound screen etc.
8 Years
| Ask Lasest Price | |
| Brand Name : | Heng Yuan |
| Model Number : | 325mm |
| Certification : | ISO, CIQ, SGS, CE |
| Price : | Negotiation |
| Payment Terms : | L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1000pcs/Month |
| Delivery Time : | 7-10 work days,according to the quantity |
12-3/4 " 30 Slot 120 Bar Well Complete Water Well Screen For Water Well Drilling
Description:
Water well screen, also known as Johnson screen, it is made up of V-shape profile wire and the longitudinal round support rods. And be widely used in water conservancy, petroleum, geothermy, chemical, food and decoration industries.
Features:
1. The continuous slot opening greatly increases the available open
area, thus better to face the aquifer;
2.The“V”shaped profile avoids clogging effectively to ensure smooth
circulation;
3. The continuous slot promises a long and effective usage;
4. Solid structure, high porosity, aperture size precision;
5. Long service life, safe and reliable, low comprehensive cost,
meanwhile, it is easy to backwash;
6. Material: Stainless steel (acid and alkali resistance,
anti-aging, long service life, and ide applicability).
Regular Specifications:
SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Special specification can be made according to your need!
Application of First choice of industrial Water Well Screen

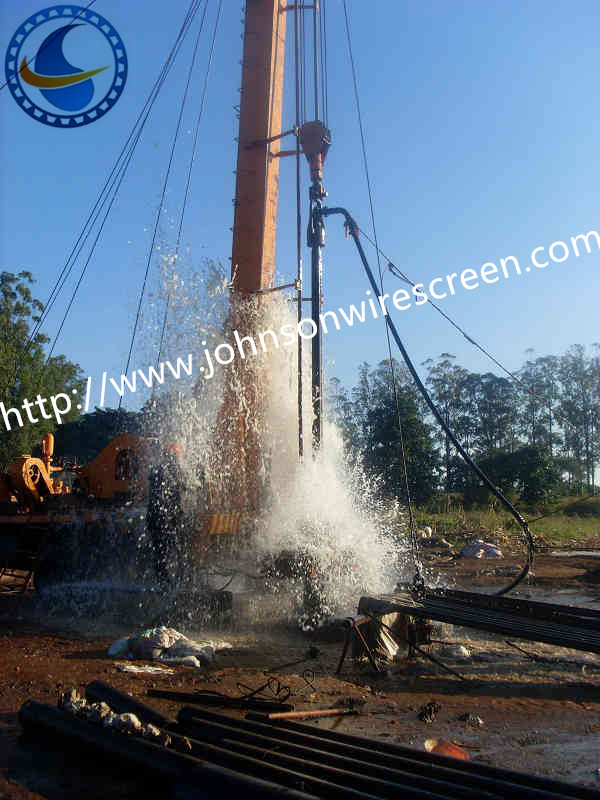

1. Water well smining & Mineral Processing
2. Municipal water supply, refining & petrochemical
3. Water treatment
4. Architecture and construction, etc.
|
|
