Stainless Steel 304 Johnson V Wire Bend Arc Screen 20 Slot Filter Treatment

Product Description:

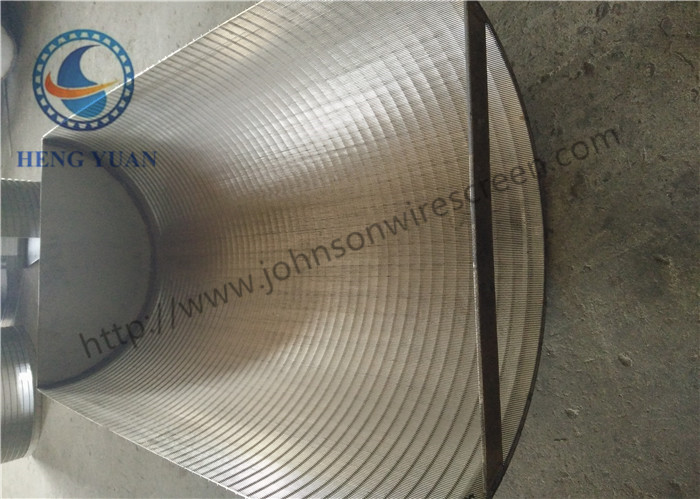

Arc wedge wire screen panel is welded by V wire and support rod.There is a fixed value slot between each v wire, The wire is V shape and the support rod can be V shape ,square shape and round shape. The arc screne panel have a certain bending degree to suit to the special usage .Our factory can offer various kinds of stainless steel welded wedge wire Arc-shape screen mesh .customers can choose different size and opening arc-shape sieving plate and sieving slice,according to the needs of themselves,in order to meet its actual need.

.

Specification:

Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

Length up to 3150mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Special specification can be made according to your need.

Advantages:

It’s gap precision, demedium performance is good and durable, the minimum slot can be reach 0.15 mm, The wire geometric shapes is good , the scrape edge is sharp, cutting ability is strong, can not only ensure the highest efficiency, but also to the maximum avoid screen hole plug.

We can also frame the arc-shape screen with polyurethane to strengthen its structure and make it have longer service time

Industry:

It can be used for filtering and screening of many kinds of media, and it is widely used in multi-industry screening, filtration, dehydration, desilting and so on.

* Mining machinery

* Wheat tooth machine

* Beer machine

* Environmental protection

* Food industry

* Aquaculture

* Chemical industry and other

Pictures:

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson screen, Mine sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Spiral screen tube,Rod based continuous slot screen pipe,Wire-wrap screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate,Flat wedge wire panel,Water filter,Arc screen, screen nozzle etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.
